RugoBox®



logo-vectra ISO 13473-1

ISO 13473-6


Measure of the texture of the pavement (MPD/ETD)

Any speed measurement of the texture of the pavement (MPD/ETD) through a transportable system.

Request information

Description

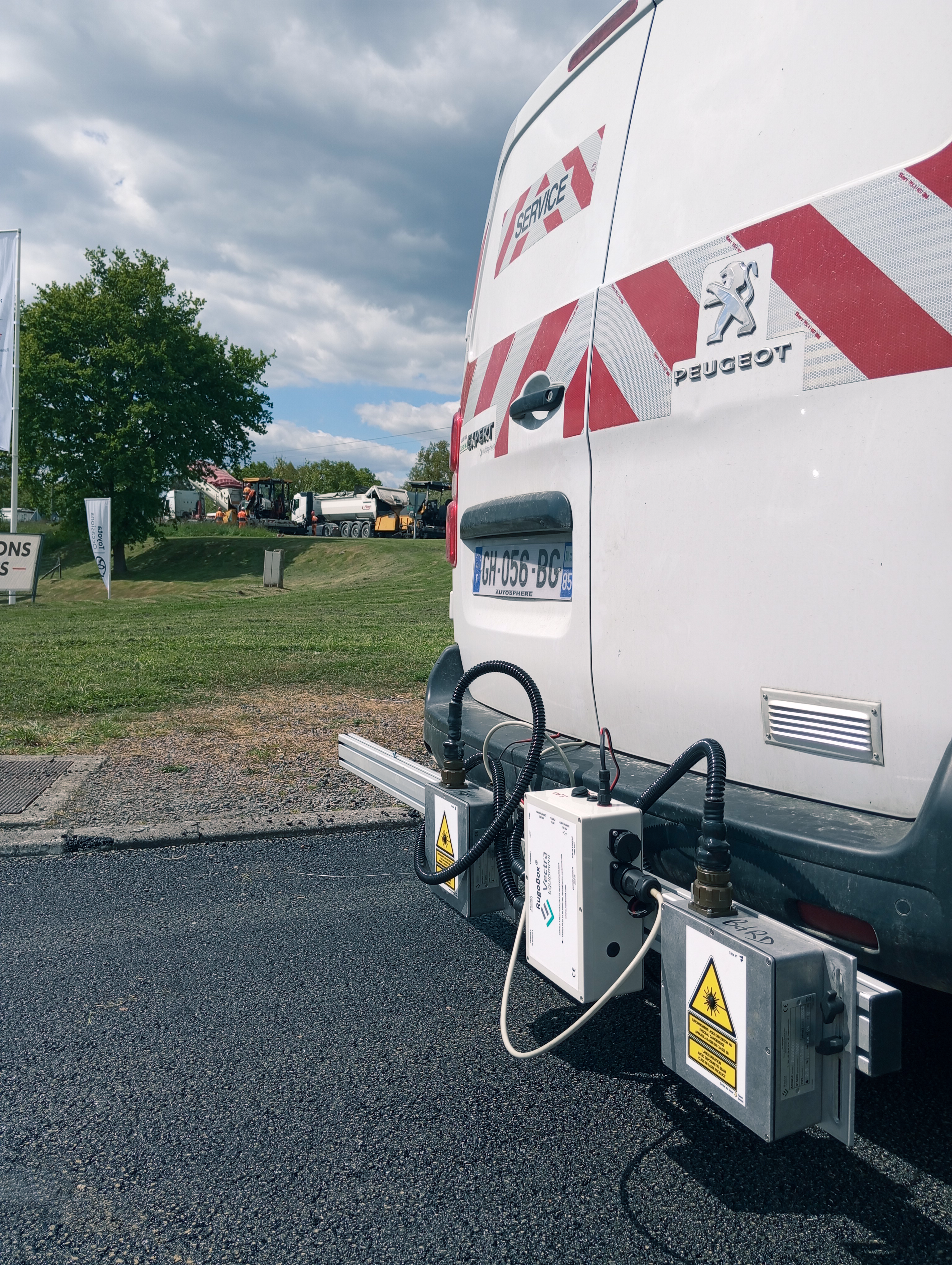

RugoBox® is a simple, modular, and affordable device designed to measure the macrotexture of road surfaces. Easily integrated onto a vehicle equipped with a tow hitch, the device enables measurements to be carried out in single-track or dual-track mode. Compliant with the requirements of the latest version of the ISO 13473-1 standard, the device provides an indication of skid resistance through the MPD (Mean Profile Depth) and ETP (Equivalent Texture Depth) indicators.

RugoBox® is supplied with its software for data acquisition and processing, allowing users to exploit the associated indicators (visualization, acceptance reports, etc.).

Features

NORME
Standards
ISO 13473-1
ISO 13473-6

CONTENTS
Power Supply
10-30 VDC (cigarette lighter plug)
Computing
Laptop/Tablet
Connectivity
Ethernet/Wi-Fi system
Distance et positioning
Odometer (DMI) and GPS

INDICATORS
Measuring speed
Every speed from 0 to 110 km/h
Indicators calculated
MPD/ETD
Installation
Bracket mounted on a standard hitch

Highlights

Portable

→ Easily transportable and can be installed on all vehicles equipped with a standard hitch

Fully comprehensive tool

→ One laser measuring head
→ Odometer and GPS for positioning the measurements
→ Dashboard caméra
→ Ability to capture events to help processing and complete the measurement context

Up to date

→ The system components, such as the processing algorithms, comply with the latest requirements of ISO 13473-1

Easy to process

→ MPD/ETD indicators are calculated directly at real time
→The RugoSoft processing software supplied allows to edit acceptance reports, but also for particular or advanced uses
